Remote Controllable , Dimmable Motion Sensor , Daylight Harvesting Function , 1 ~ 10v Dimming
Thanks to the Dual-processor technology, this sensor successfully combines motion detection and daylight harvesting function. The lamp will automatically adjust its output level according to the change of natural brightness when it's motion detected. This feature makes it ideal for office / commercial lighting.
Features--
Input voltage 12V DC (5V & 24V DC version available on request).
Input current:≧25mA.
1~10V dimming signal.
Dual-processor technology, real Daylight monitoring function for built-in application.
IR remote commissioning, easy setting and user friendly.
Detection range up to 12m in diameter.
Mounting height: 3~6m.
Operation temperature: -20℃ ~ +70 ℃

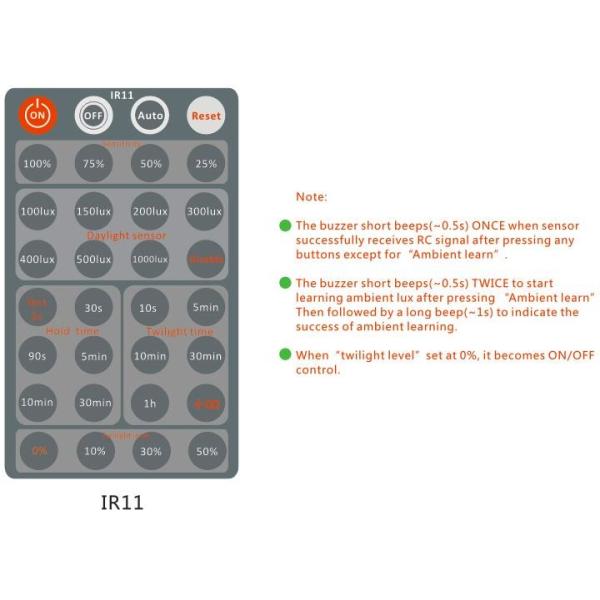

Settings(by remote control IR11)--
Permanent ON/OFF function
Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.
Dim +/-
Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.
*after desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lock down the new brightness again.
Sensor mode
Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
Reset function
Press”Reset” button, all settings go back to factory default settings.
Ambient learn
Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.
Test mode
"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.
Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.
In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).
Easy operation for daylight harvest--
Detection pattern--
Daylight monitoring function--
